Termék részletek
Főkategória >Kijelzők >7 inch

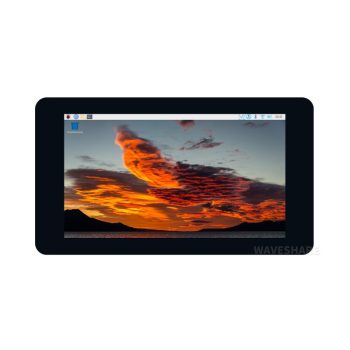

7inch Capacitive Touch Display, DSI Interface, IPS Screen, 800×480, 5-Point Touch

Raktárkészlet: VAN
7inch Capacitive Touch Display, DSI Interface, IPS Screen, 800×480, 5-Point Touch
  • 7inch Capacitive Touch Display, DSI Interface, IPS Screen, 800×480, 5-Point Touch
  • 7inch Capacitive Touch Display, DSI Interface, IPS Screen, 800×480, 5-Point Touch
  • 7inch Capacitive Touch Display, DSI Interface, IPS Screen, 800×480, 5-Point Touch
  • 7inch Capacitive Touch Display, DSI Interface, IPS Screen, 800×480, 5-Point Touch
21 646 Ft + 27% ÁFA | Bruttó:27 490 Ft
db Kosárba Kosárba
Értesítést kérek árcsökkenés esetén
Részletek Hasonló termékek Adatok

  • Details

    7inch Capacitive Touch Display, DSI Interface, IPS Screen, 800×480, 5-Point Touch, with case(optional)
    7″ DSI Touch Display

    Multi-touch | With Case (Optional)



    Version Options

    The display only

    The display with case

    Only suitable for Raspberry Pi 4B


    Device & System Support

    Raspberry Pi
    Supports Raspberry Pi OS, 5-point touch, driver free
    Supports Ubuntu / Kali/ WIN10 IoT, single point touch, driver free
    Supports Retropie, driver free

    Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4* (the case supports Pi 4B only, due to connector layout)

    adapter cable

    VisionFive2
    Supports Debian, single point touch, driver free

    Core3566
    Supports Debian / Ubuntu, 5-point touch, driver free

    Connection Examples

    Working with Raspberry Pi 4B

    The display only

    The display with case

    Working with Raspberry Pi 3B+

    Working with Core3566 to Pi 4B Kit

    Working with VisionFive2

    for reference only, the above controller boards are NOT included

    IPS Display Panel

    Excellent Display Performance With 170° Wide Viewing Angle

    High quality picture , clear and bright

    New generation IPS LCD screen with more natural gradual color change

    Display Color is More Vivid

    Better visual experience with more color details on the screen

    Capacitive 5-point Touch
    1. up to 5-point touch, depending on the operating system
    2. up to 6H hardness toughened glass panel

    Adjustable Brightness Via Software
    Interface Introduction

    The display only

    The display with case


    How to install
    Product show

    The display only

    The display with case

    Dimensions

    Support touch screen customization

    Support the following ways to customize the touch screen display in bulk order

    Over a decade
    Waveshare grows with display

    * Waveshare has been focusing on display design for over 10 years.

    Resources & Services
    Wiki: www.waveshare.com/wiki/7inch_DSI_LCD_(B)
    Product Certification

    HDMI Certified

    Selection Guide

    PartNumber Display Touch Audio Device Support
    Resolu-tion Display Port Display Panel View Angle Touch Type Touch Port Toughened Glass Panel Optical Bonding Spe-
    aker    		 Signal Output Pi JETSON NANO PC
    SPI DISPLAYS
    PROS: low price.
    CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
    3.2inch RPi LCD (B) 320×240 SPI TFT – Resistive SPI × × × × √ × ×
    3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × √ × ×
    3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT – Resistive SPI × × × × √ × ×
    4inch RPi LCD (C) 480×320 High-Speed SPI TFT – Resistive SPI × × × × √ × ×
    DPI DISPLAYS
    PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system.
    CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
    2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C √ √ × × √ × ×
    3.5inch DPI LCD 640×480 DPI IPS 170° Capacitive I2C √ × × × √ × ×
    4inch DPI LCD (B) 480×800 DPI IPS 170° Capacitive I2C √ × √ √ √ × ×
    4inch DPI LCD (C) 720×720 DPI IPS 170° Capacitive I2C √ √ × × √ × ×
    5inch DPI LCD 800×480 DPI IPS 160° × × × × × × √ × ×
    7inch DPI LCD 1024×600 DPI IPS 170° × × × × × × √ × ×
    DSI DISPLAYS
    PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
    CONS: supports Raspberry Pi only.
    2.8inch DSI LCD 480×640 DSI IPS 160° Capacitive I2C √ √ × × √ × ×
    3.4inch DSI LCD (C) 800×800 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
    4inch DSI LCD 480×800 DSI IPS 170° Capacitive I2C √ × × × √ × ×
    4inch DSI LCD (C) 720×720 DSI IPS 170° Capacitive I2C √ √ × × √ × ×
    4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
    4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
    4.3inch DSI QLED 800×480 DSI IPS(QLED) 160° Capacitive I2C √ × × × √ × ×
    5inch DSI LCD 800×480 DSI TFT - Capacitive I2C √ × × × √ × ×
    5inch DSI LCD (B) 800×480 DSI IPS 160° Capacitive I2C √ × × × √ × ×
    7inch DSI LCD 800×480 DSI TFT - Capacitive I2C √ × × × √ × ×
    7inch DSI LCD (with case A) 800×480 DSI TFT - Capacitive I2C √ × × × √ × ×
    7inch DSI LCD (with cam) 800×480 DSI TFT - Capacitive I2C √ × × × √ × ×
    7inch DSI LCD (with cam and case) 800×480 DSI TFT - Capacitive I2C √ × × × √ × ×
    7inch DSI LCD (B) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
    7inch DSI LCD (B) (with case A) 800×480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
    7inch DSI LCD (C) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × ×
    7inch DSI LCD (C) (with case A) 1024×600 DSI IPS 170° Capacitive I2C √ × × × √ × ×
    7.9inch DSI LCD 400×1280 DSI IPS 170° Capacitive I2C √ × × × √ × ×
    8inch DSI LCD 800×480 DSI TFT - Capacitive I2C √ × × × √ × ×
    8inch DSI LCD (with cam) 800×480 DSI TFT - Capacitive I2C √ × × × √ × ×
    8inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
    10.1inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C √ √ × × √ × ×
    11.9inch DSI LCD 320×1480 DSI IPS 170° Capacitive I2C √ × × × √ × ×
    HDMI / TYPE-C DISPLAYS
    PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
    CONS: somewhat costly.
    2.8inch HDMI LCD (H) 480×640 HDMI IPS 160° Capacitive USB-C / I2C √ √ × × √ √ √
    3.2inch HDMI LCD (H) 480×800 HDMI IPS 160° × × × × × × √ √ Display ONLY
    3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × √ √ × Display ONLY
    3.5inch 480x800 LCD 480×800 HDMI IPS 170° Capacitive USB-C × × × × √ √ √
    4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
    4inch HDMI LCD (C) 720×720 HDMI IPS 170° Capacitive USB-C / I2C √ √ × √ √ √ √
    4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × √ √ × Display ONLY
    4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × × √ √ √ √
    5inch HDMI LCD 800×480 HDMI TFT – Resistive SPI × × × × √ × ×
    5inch HDMI LCD (with bicolor case) 800×480 HDMI TFT – Resistive SPI × × × × √ × ×
    5inch HDMI LCD (B) 800×480 HDMI TFT – Resistive USB × × × × √ × √
    5inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Resistive USB × × × × √ × √
    5inch HDMI LCD (G) 800×480 HDMI/VGA TFT – Resistive USB × × × √ √ × √
    5inch HDMI LCD (H) 800×480 HDMI/VGA TFT – Capacitive USB √ × × √ √ √ √
    5inch HDMI LCD (H) V4 800×480 HDMI TFT – Capacitive USB √ × × × √ × √
    5inch HDMI AMOLED 960×544 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √
    5inch 1080x1080 LCD 1080×1080 HDMI IPS 160° Capacitive Type-C √ √ √ √ √ √ √
    5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ √ √
    5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB √ √ × √ √ × ×
    5.5inch 1440x2560 LCD 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × √
    5.5inch 1440x2560 LCD (with case A) 1440×2560 HDMI IPS 170° Capacitive USB √ √ × √ √ × ×
    6inch HDMI AMOLED 1080×2160 HDMI AMOLED 160° × × × × √ √ √ √ Display ONLY
    7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
    7inch HDMI LCD (B) 800×480 HDMI TFT – Capacitive USB × × × × √ × √
    7inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Capacitive USB × × × × √ × √
    7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √
    7inch HDMI LCD (C) (with bicolor case) 1024×600 HDMI IPS 170° Capacitive USB × × × × √ × √
    7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × × √ √ √ √
    7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × × √ √ √ √
    7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
    7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB √ × × √ √ √ √
    8DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
    8HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √
    8inch 1536x2048 LCD 1536×2048 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
    8.8inch Side Monitor 480×1920 HDMI IPS 170° × × × × √ × √ √ Display ONLY
    9HP-CAPQLED-B 1280×720 HDMI IPS (QLED) 178° Capacitive USB √ × × √ √ √ √
    9.3inch 1600x600 LCD 1600×600 HDMI IPS 178° Capacitive Type-C √ √ √ √ √ √ √
    10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × √ × Display ONLY
    10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB √ × × × √ × √
    10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB √ √ × √ √ √ √
    10.1inch HDMI LCD (G) (with case) 1920×1200 HDMI IPS 160° Capacitive USB √ √ √ √ √ √ √
    10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT – Capacitive USB × × × × √ √ √
    10.1inch HDMI LCD (F) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB √ × √ × √ √ √
    10.1DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
    10.1HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB √ × × √ √ √ √
    10.1HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB √ √ √ √ √ √ √
    10.4HP-CAPQLED 1600×720 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √
    10.5inch HDMI AMOLED 2560×1600 HDMI AMOLED 160° Capacitive USB √ √ √ √ √ √ √
    11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ √ × √ √ √ √
    11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ √ √ √ √ √ √
    11.9inch HDMI LCD 320×1480 HDMI IPS 170° Capacitive USB √ × × √ √ √ √
    13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √
    13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
    13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
    13.3inch QHD AMOLED 2560×1440 HDMI/Type-C AMOLED 178° Capacitive Type-C √ √ √ √ √ √ √
    15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB √ × × √ √ √ √
    15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB √ × √ √ √ √ √
    15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB √ × √ √ √ √ √
    15.6HP-CAPQLED 1920×1080 HDMI IPS(QLED) 178° Capacitive USB √ √ × √ √ √ √
    15.6inch QLED Monitor 1920×1080 HDMI IPS(QLED) 178° Capacitive Type-C √ √ √ √ √ √ √
    21.5inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive Type-C √ √ √ × √ √ √

    Weight: 0.246 kg

    Quick Overview

    7inch DSI LCD (B) kit

    1. 7inch DSI LCD (B) x1
    2. FPC 15PIN 1.0 pitch 50mm (opposite sides) x1
    3. 2PIN to PH2.0 2PIN cable 6cm x1
    4. FPC 15PIN 1.0 pitch 160mm (opposite sides) x1
    5. Screws pack x1

    7inch DSI LCD (B) with case kit

    1. 7inch DSI LCD (B) kit x1
    2. Black case kit x1
  • Felbontás
    800 x 480
    Csatlakozás
    DSI
    Típus
    IPS
    Érintőpanel
    Kapacitív
    Képátló
    7"
    Audio kimenet
    Nincs
    Gyártó
    Waveshare
    Kiegészítők
    nincs
    Betekintési szög
    170°
    Érintőpanel Port
    DSI
    Edzett üveglap
    igen
    Optikai ragasztás
    nem
    Audio hangszóró
    nem
    Pi támogatás
    igen
    JETSON NANO támogatás
    nem
    PC támogatás
    nem
    Raspberry Pi támogatás
    igen
    Brand
    Waveshare
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS25269
:
;
