SX130x 868M/915M LoRaWAN Gateway HAT Raspberry Pihez, szabványos Mini-PCIe aljzat, nagy hatótávolságú átvitel, GNSS modul

Raktárkészlet: VAN
SX130x 868M/915M LoRaWAN Gateway HAT Raspberry Pihez, szabványos Mini-PCIe aljzat, nagy hatótávolságú átvitel, GNSS modul
  • SX130x 868M/915M LoRaWAN Gateway HAT Raspberry Pihez, szabványos Mini-PCIe aljzat, nagy hatótávolságú átvitel, GNSS modul
  • SX130x 868M/915M LoRaWAN Gateway HAT Raspberry Pihez, szabványos Mini-PCIe aljzat, nagy hatótávolságú átvitel, GNSS modul
  • SX130x 868M/915M LoRaWAN Gateway HAT Raspberry Pihez, szabványos Mini-PCIe aljzat, nagy hatótávolságú átvitel, GNSS modul
  • SX130x 868M/915M LoRaWAN Gateway HAT Raspberry Pihez, szabványos Mini-PCIe aljzat, nagy hatótávolságú átvitel, GNSS modul
  • SX130x 868M/915M LoRaWAN Gateway HAT Raspberry Pihez, szabványos Mini-PCIe aljzat, nagy hatótávolságú átvitel, GNSS modul
59 047 Ft + 27% ÁFA | Bruttó:74 990 Ft
Értesítést kérek árcsökkenés esetén
  • Details

    SX130x 868M/915M LoRaWAN Gateway Module/HAT for Raspberry Pi, L76K Module(HAT only), Standard Mini-PCIe Socket, Long range Transmission, Large Capacity, Multi-band Support
    SX130x LoRaWAN Gateway Module/HAT

    Standard Mini-PCIe Socket

    SX130x LoRaWAN Gateway HAT - Optional
    For detailed configuration, please refer to the package list
    Features at a glance

    This product is a LoRa Gateway module that incorporates a new-generation SX1302/3 normal band chip. It has lots of advantages including long-range transmission, large capacity node, and high receiving sensitivity. In addition, SX1303 supports concurrent communication. Due to the outstanding performance of SX1302/3 on low power consumption, the heat dissipation design of the Gateway can be simplified, thus reducing material cost, also achieving a smaller size.

    LoRaWAN Gateway Module features:

    • Integrates Semtech SX1302/3 normal band and SX1250 radio RF frond-end chip
    • Onboard PA and LNA, features +26dBm emit power and -141dBm high sensitivity receiving gain
    • The SX1303 supports Fine Timestamp and network positioning based on time difference of arrival (TDOA)
    • 52-pin Mini-PCIe socket for easy integration into various embedded systems
    • Onboard 4 LED indicators for module operating status
    • Comes with development resources and manual (example in C)

    HAT features:

    • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
    • Incorporate L76K module with GPS/BD support, provide accurate clock and location info for gateway module
    • Comes with development resources and manual (example in C)
    Specifications
    Band Chip SX1302 SX1303
    868M 915M 868M 915M
    Frequency range 868M: EU868, IN865, RU864
    915M: US915, AU915, KR920
    Power supply 5V
    Modulation LoRa/(G)FSK
    Emit power +26dBm@5V
    Receiving sensitivity -141dBm@125KHz/SF12
    -121dBm@125KHz/SF5
    Overall power consumption emitting: 454mA@5V
    receiving: 42mA@5V
    sleep: 11mA@5V
    emitting: 427mA@5V
    receiving: 40mA@5V
    sleep: 8mA@5V
    Communication bus SPI, I2C
    External connector Mini-PCIe
    Operating temperature -40~85℃
    Dimensions 50.95 x 30mm

    Performance-upgraded SX1302/3 chip

    Onboard Semtech SX1302/3 Band Chip
    Lower Power Consumption, Fast Data Rate, Longer Distance

    Multiple channels smooth communication

    a better solution for concurrent high throughput situation


    FEC Forward Error Correction algorithm

    the new generation LoRa spread spectrum technology,
    higher anti-interference performance, longer communication distance

    SX1303 Supports Fine Timestamp

    Network positioning based on time difference of arrival (TDOA)

    SX1302 does not support this function.

    Application example
    What's on board

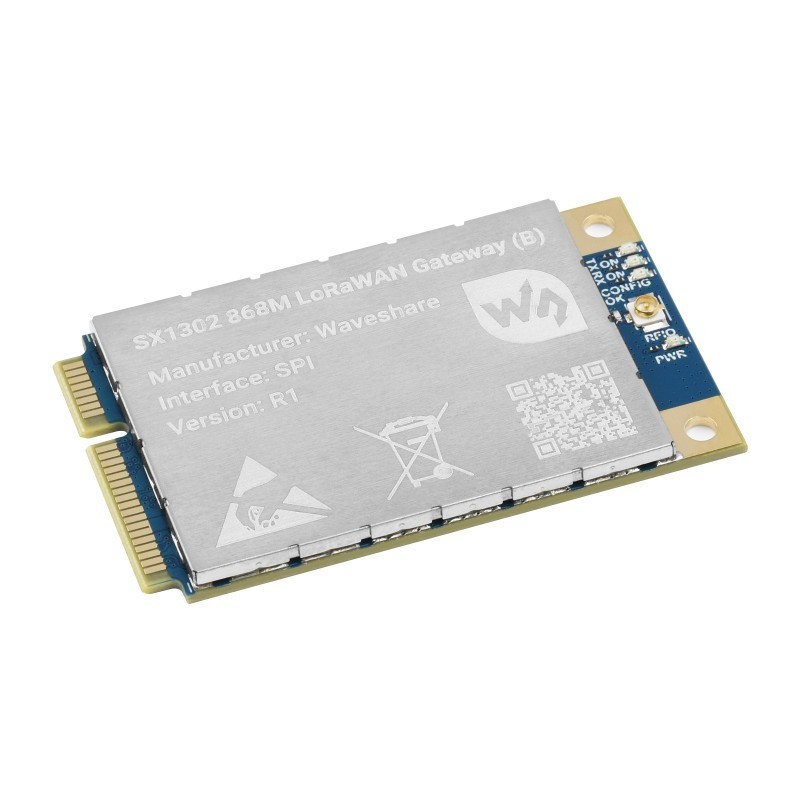

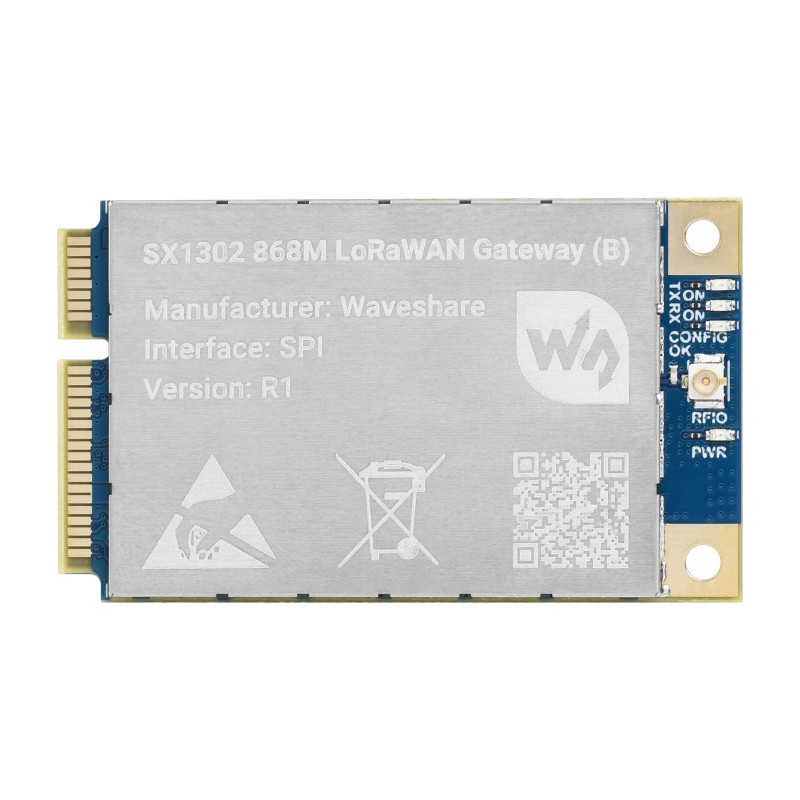

    1. SX1302/3 LoRaWAN Gateway module
    2. Mini-PCIe socket and buckle
    3. L76K module
    4. RT9193-33 power chip
    5. Status indicator
      PWR: power indicator
      RXD/TXD: UART RX/TX indicator
      PPS: GPS status indicator

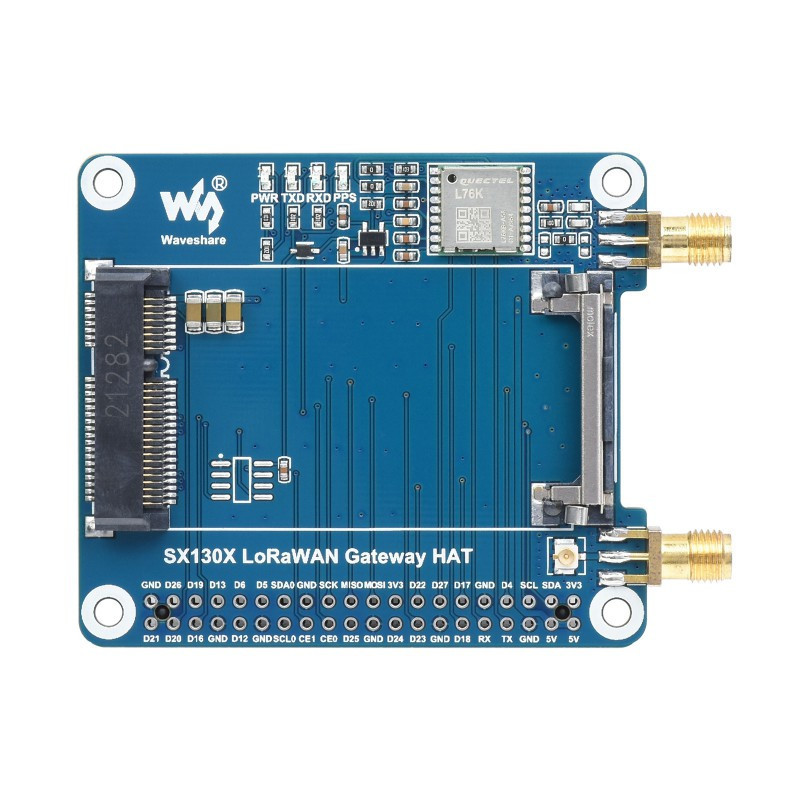

    1. Raspberry Pi GPIO header
      for connecting with Raspberry Pi series boards
    2. L76K antenna connector
    3. LoRa Gateway antenna connector
    4. Battery holder
      supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
    Module Pinout Definition
    HAT Pinout definition
    Outline Dimensions

    Weight: 0.123 kg

    Quick Overview

    SX130x LoRaWAN Gateway Module (B)

    1. OPTIONS SX130x LoRaWAN Gateway Module (B) x1
    2. IPEX1 to SMA wire x1
    3. Antenna 868M 5dBi x1
    2
    3

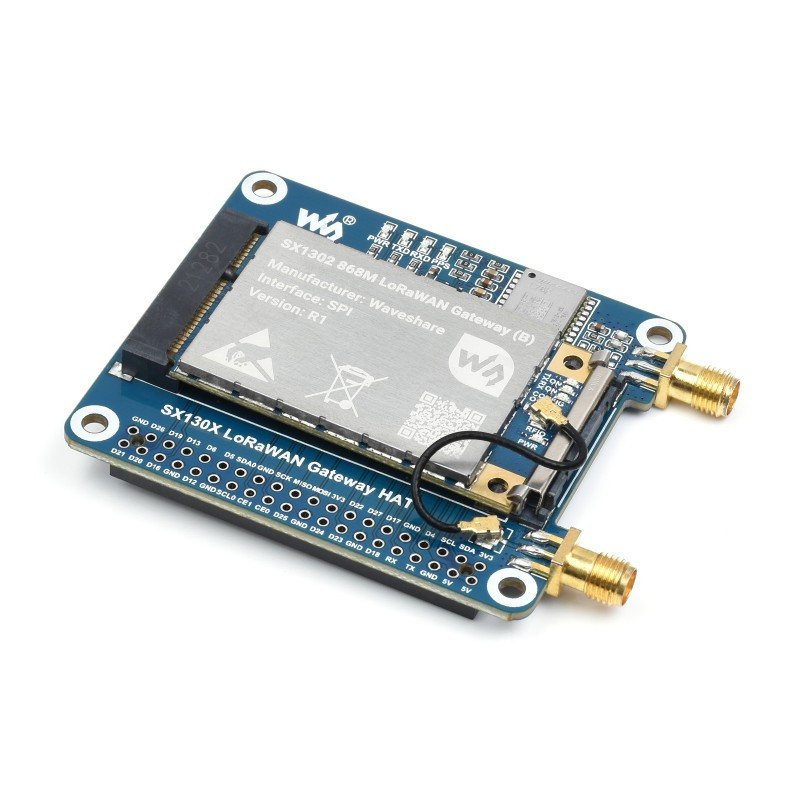

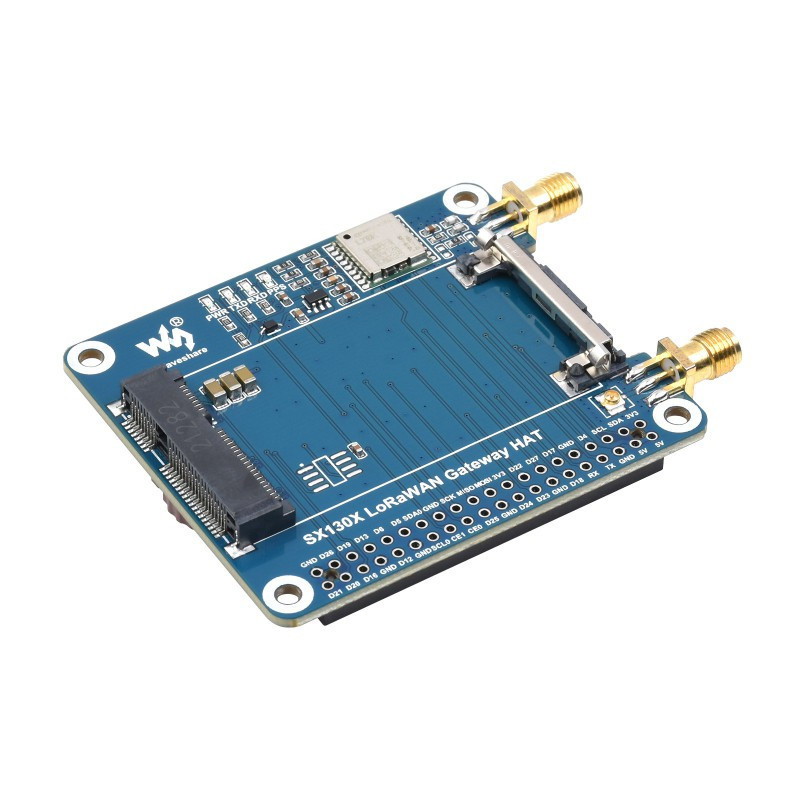

    SX130x LoRaWAN Gateway HAT

    1. SX130x LoRaWAN Gateway HAT x1
    2. OPTIONS SX130x LoRaWAN Gateway Module (B) x1
    3. Antenna 868M 5dBi x1
    4. GPS antenna x1
    5. 2×20PIN female pinheader x1
    6. Dual IPEX1 wire x1
    7. Screws pack x1
  • Brand
    Waveshare
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS22611
;
