PoE bővítőkártya NVIDIA Jetson Orin Nano/NX-hez, Mini Body, több helytakarékos

Részletek Kiegészítő termékek Adatok Csomag tartalma

PoE Expansion Board For NVIDIA Jetson Orin Nano/NX, Mini Body, More Space Saving
Jetson Orin PoE Module
Mini Body, more space-saving
Features At A Glance

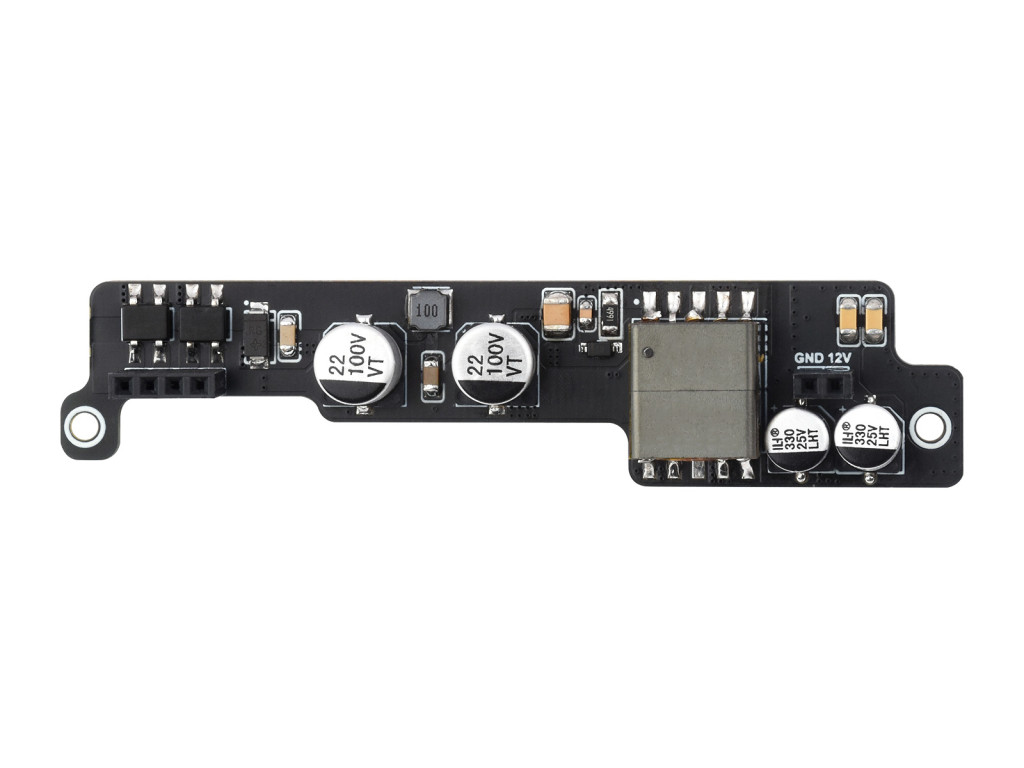

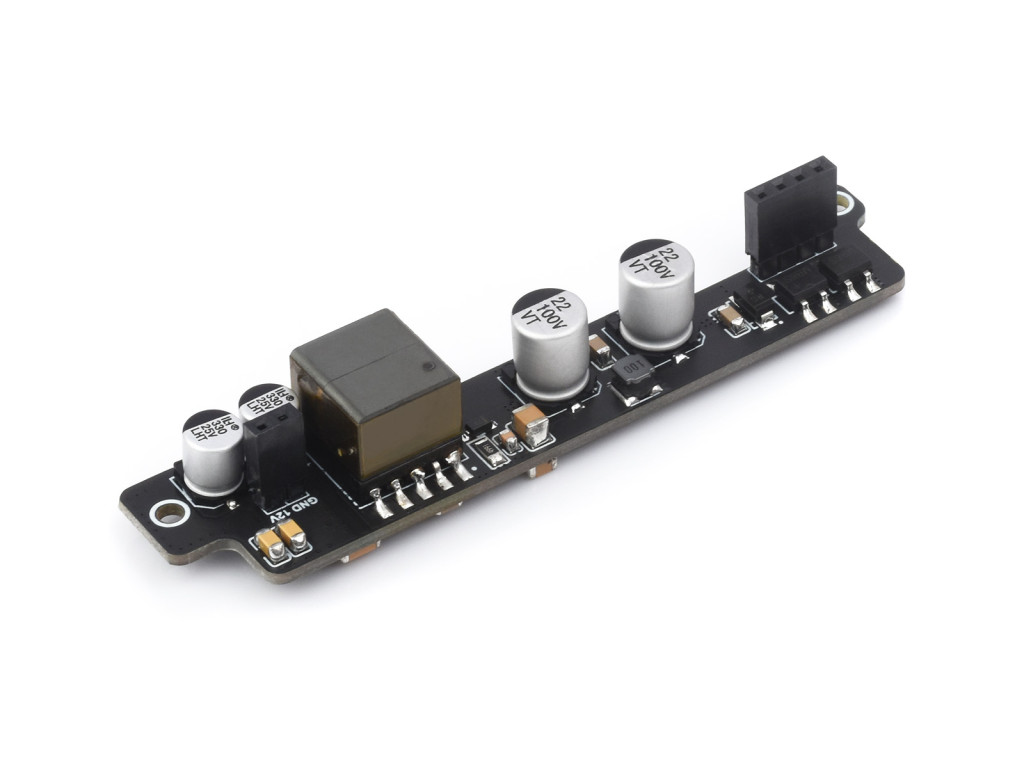

TheJETSON-ORIN-POE-MODULE is a mini 802.3af-compliant Power Over Ethernet accessory for the NVIDIA Jetson Orin Nano/NX. By using this small module and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Orin board in only one Ethernet cable.
Suitable for Jetson Orin Nano / Jetson Orin NX
PoE (Power Over Ethernet) capability, IEEE 802.3af/at-compliant
Fully isolated switched-mode power supply (SMPS)
Smaller and more flexible with a more compact component layout
Specifications
PoE power input 37V ~ 57V DC in
Power output 12V 2.1A DC out
Network standard supports IEEE 802.3af/at PoE
Dimensions 21 × 92mm
Suitable for Jetson boards
Suitable for Jetson Orin Nano / Jetson Orin NX
Note: the PoE pin header of Orin Nano/NX baseboard needs to be pre-soldered before connecting the PoE module.
Power Over Ethernet

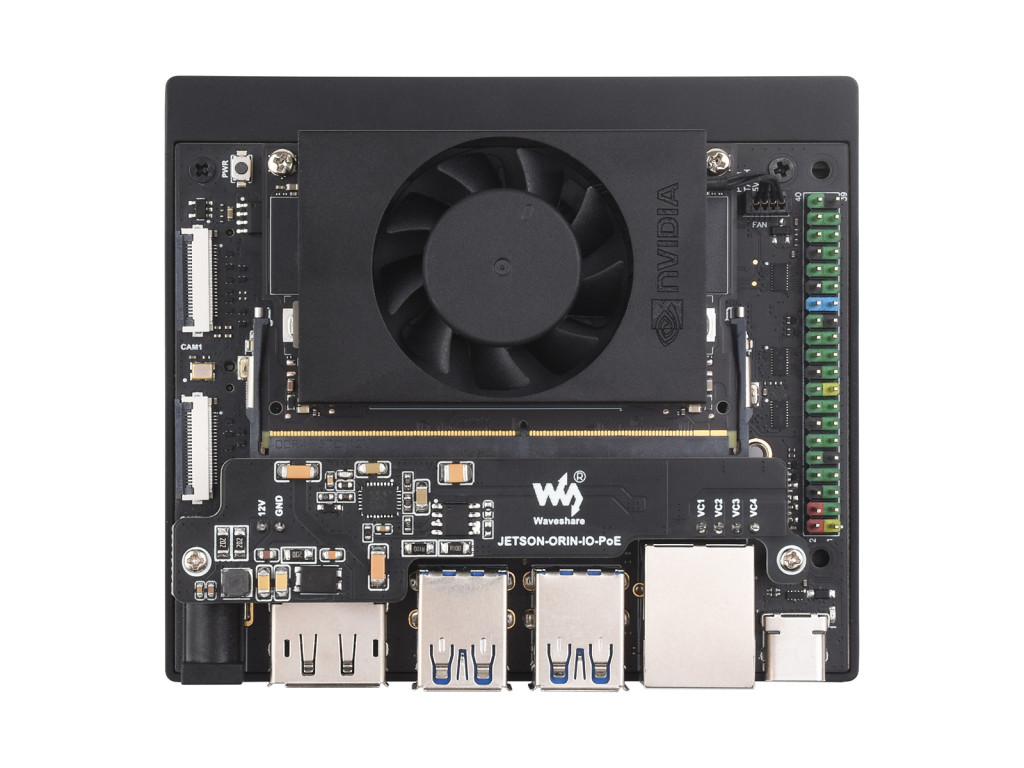

Providing Both Network Connection And Power Supply For Your Jetson Orin In One Cable
* for reference only, the Jetson Orin Nano board and Switch are NOT included.

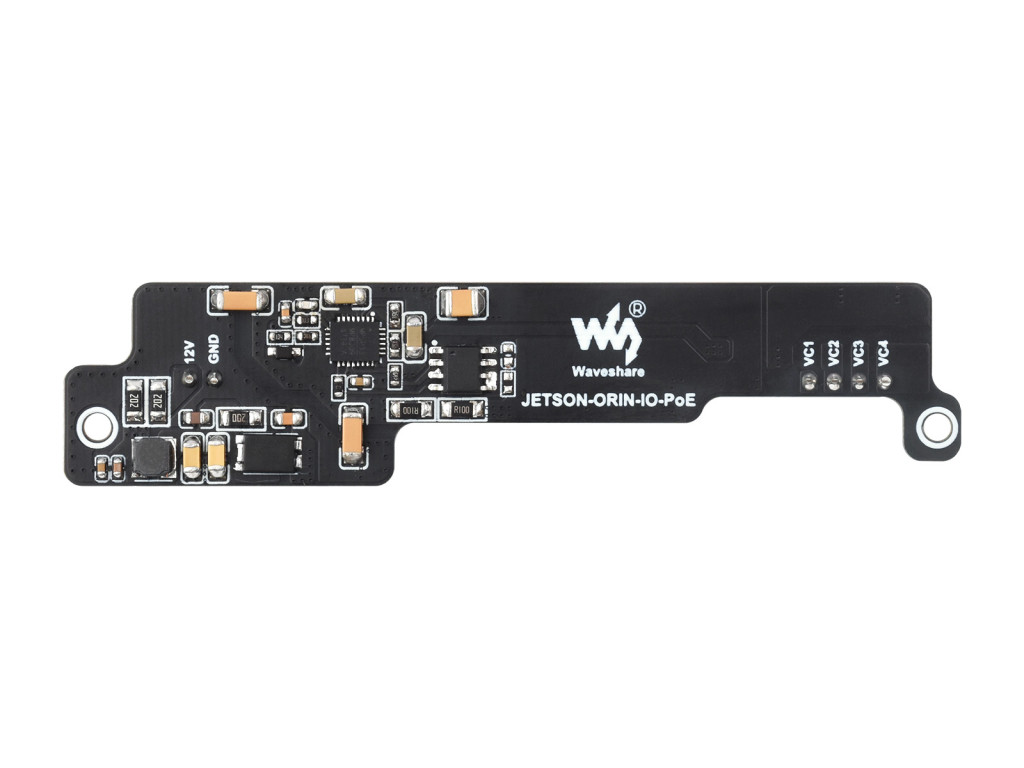

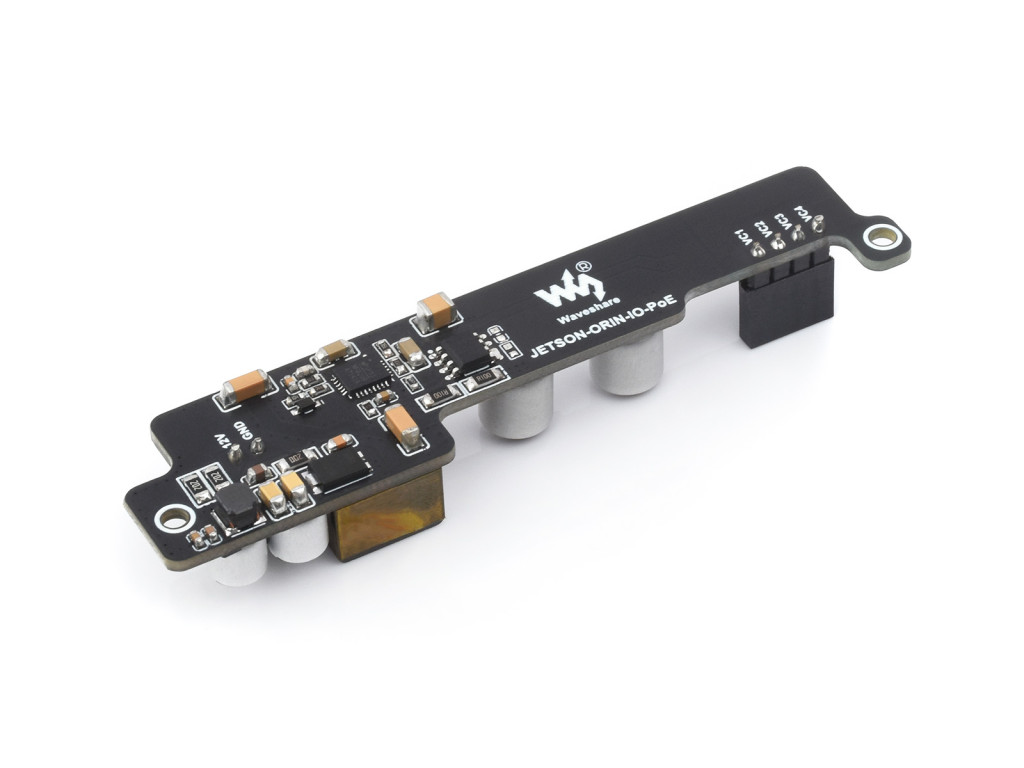

What's Onboard
Note: since the PoE board is small and the temperature of transformer will be high when working, please do not touch the transformer and consider adding extra cooling solution when using this module.
Outline dimensions
Resources & Services
Wiki:www.waveshare.com/wiki/JETSON-ORIN-POE-MODULE
