RP2350 MCU kártya, 1,28 hüvelykes, kerek érintőképernyős LCD-vel, kétmagos és két architektúrájú kialakítás, 240 × 240 pixel, 65 ezer szín, IPS panel

ÚJ
Raktárkészlet: VAN
RP2350 MCU kártya, 1,28 hüvelykes, kerek érintőképernyős LCD-vel, kétmagos és két architektúrájú kialakítás, 240 × 240 pixel, 65 ezer szín, IPS panel
  • RP2350 MCU kártya, 1,28 hüvelykes, kerek érintőképernyős LCD-vel, kétmagos és két architektúrájú kialakítás, 240 × 240 pixel, 65 ezer szín, IPS panel
  • RP2350 MCU kártya, 1,28 hüvelykes, kerek érintőképernyős LCD-vel, kétmagos és két architektúrájú kialakítás, 240 × 240 pixel, 65 ezer szín, IPS panel
  • RP2350 MCU kártya, 1,28 hüvelykes, kerek érintőképernyős LCD-vel, kétmagos és két architektúrájú kialakítás, 240 × 240 pixel, 65 ezer szín, IPS panel
14 209 Ft + 27% ÁFA | Bruttó:18 046 Ft
db Kosárba Kosárba
Értesítést kérek árcsökkenés esetén
RP2350 MCU kártya, 1,28 hüvelykes, kerek érintőképernyős LCD-vel, kétmagos és két architektúrájú kialakítás, 240 × 240 pixel, 65K szín, IPS panel, opcionális CNC fémházhoz
Részletek Adatok Csomag tartalma
  • RP2350 MCU Board, With 1.28inch Round Touch LCD, Dual-core & Dual-architecture Design, 240×240 Pixels, 65K Color, IPS Panel, Optional For CNC Metal Case
    RP2350 MCU Board with 1.28inch Touch LCD

    Based on Raspberry Pi RP2350

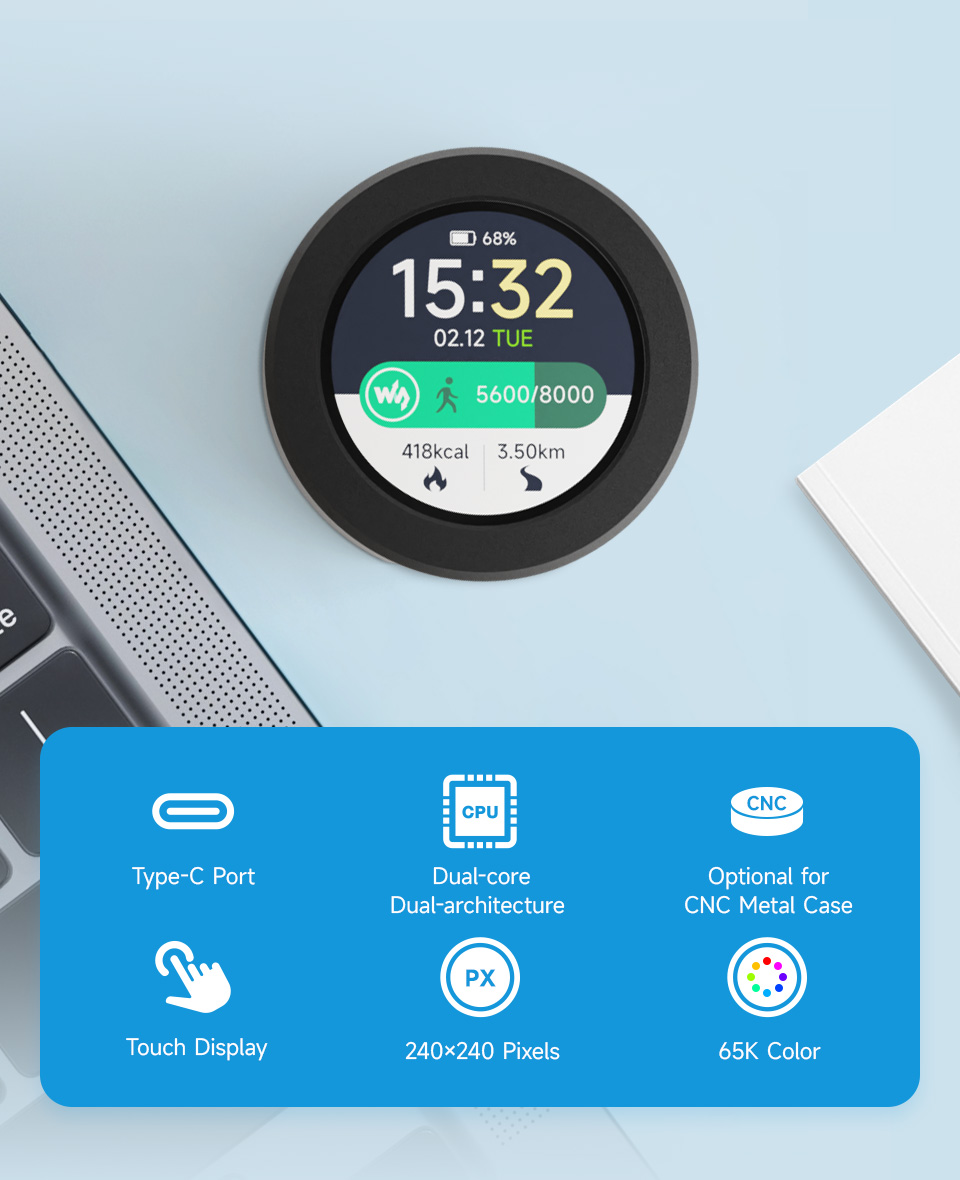

    RP2350 MCU board with 1.28inch round touch LCD, front view and features
    Version options
    RP2350-Touch-LCD-1.28

    RP2350-Touch-LCD-1.28without case

    RP2350-Touch-LCD-1.28-B

    RP2350-Touch-LCD-1.28-B with CNC metal case

    Features

    RP2350-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, which makes it easy for you to integrate it into products quickly.

    Key features include:

    • RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
    • Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
    • 520KB of SRAM, and 16MB of onboard Flash memory
    • Type-C connector, keeps it up to date, easier to use
    • Onboard 1.28inch capacitive touch LCD, 240×240 pixels, supports 65K color for clear color picture display
    • Lithium battery recharge/discharge header, suitable for mobile devices
    • USB 1.1 with device and host support
    • Low-power sleep and dormant modes
    • Drag-and-drop programming using mass storage over USB
    • Accurate clock and timer on-chip
    • Temperature sensor
    • 6 × GPIO pin via SH1.0 connector
    Optional for CNC metal case

    Adopts CNC metal case for fast heat dissipation, with Acrylic dull-polish bottom plate

    RP2350 MCU board with 1.28inch round touch LCD, optional for CNC metal case

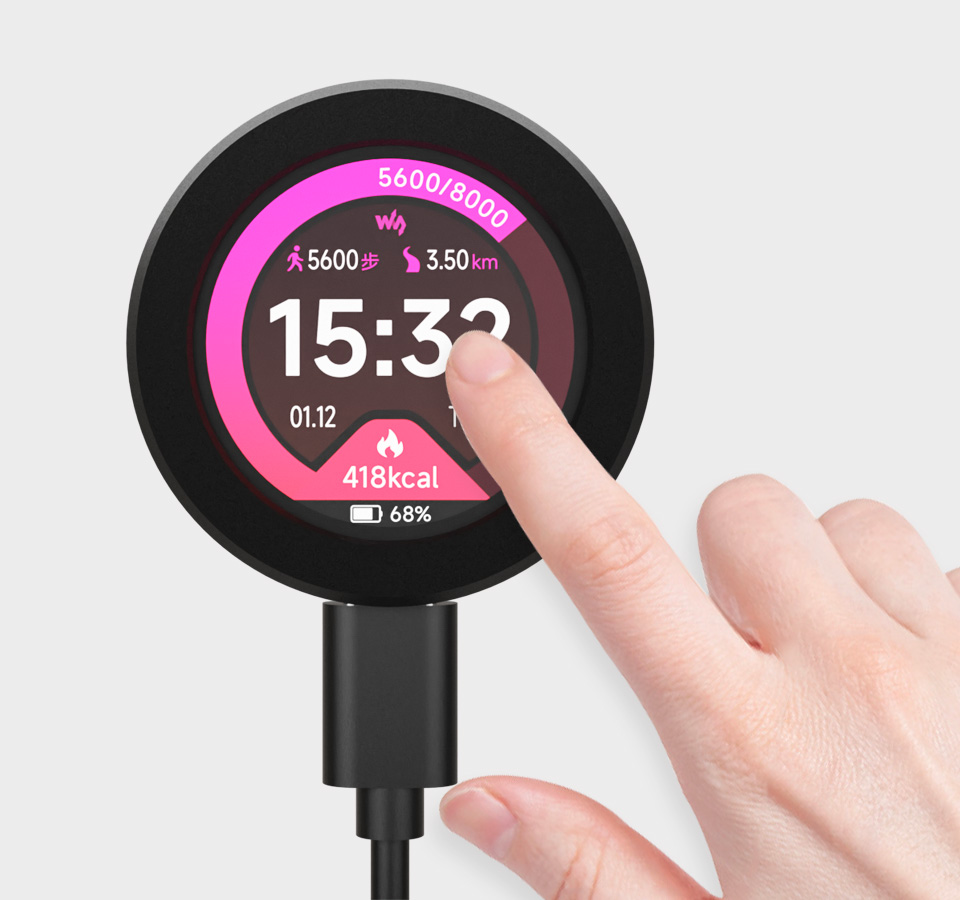

    Small size, touch more possibilities

    Suitable for various smart devices development, can realize human-computer interaction function

    dual-core, dual-architecture

    The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment

    RP2350 MCU board with 1.28inch round touch LCD, dual-core, dual-architecture
    C/C++, MicroPython, Arduino support

    Comprehensive SDK, dev resources, tutorials to help you easily get started

    RP2350 MCU board with 1.28inch round touch LCD, with C/C++, MicroPython support
    What's On Board
    RP2350 MCU board with 1.28inch round touch LCD, onboard components
    1. USB Type-C connector for program burning, USB 1.1 with device and host support
    2. ETA6098 high efficiency Lithium battery recharge manager
    3. RT9193-33PB 300mA low dropout, low noise, ultra-fast LDO
    4. W25Q128JVSIQ 16MB NOR-Flash
    5. RP2350 Dual-core and dual-architecture design, up to 150 MHz operating frequency
    1. QMI8658 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.
    2. BOOT button Press it when resetting to enter download mode
    3. RESET button
    4. MX1.25 battery header MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
    Pin definition
    RP2350 MCU board with 1.28inch round touch LCD, pin definition
    outline dimensions

    without case

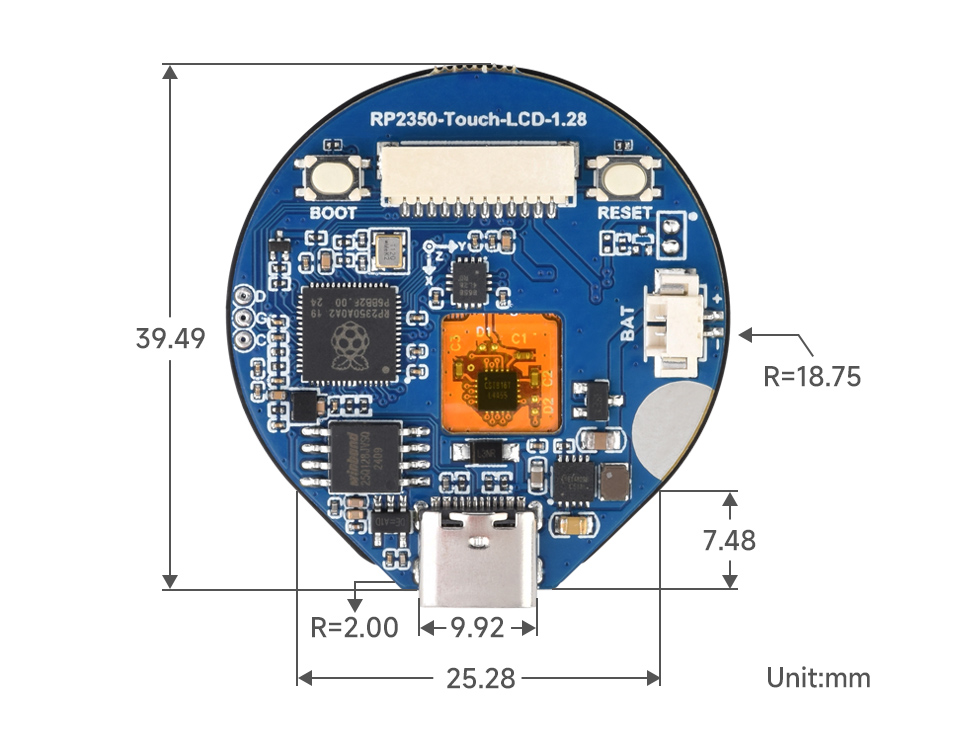

    RP2350 MCU board with 1.28inch round touch LCD, without case outline dimensionsRP2350 MCU board with 1.28inch round touch LCD, without case outline dimensions

    with metal case

    RP2350 MCU board with 1.28inch round touch LCD, with metal case outline dimensions
    Resources & Services
    Wiki:www.waveshare.com/wiki/RP2350-Touch-LCD-1.28
    Pico Product Selection
    PRODUCTVoltage regulator chipUSBFlashLithium battery headerOnboard LCD
    RP2350 chip
    Raspberry Pi Pico 2DC-DC, 800mAMicro USB4MB--
    Raspberry Pi Pico 2 WDC-DC, 800mAMicro USB4MB-with WIFI and Bluetooth
    Type-A ver.LDO, 500mAType-A4MB--
    Type-C ver.LDO, 800mAType-C4MB--
    Tiny ver.LDO, 800mASeparate Type-C port adapter4MB-Separate adapter board design, adapting USB Type-C port via FPC
    ETH Port ver.LDO, 800mAType-C4MB-with Ethernet port
    1.28inch Round LCD ver.LDO, 300mAType-C4MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS LCD
    1.28inch Round Touch LCD ver.LDO, 300mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS touch LCD
    0.96 LCD ver.DC-DC, 2000mAType-C4MBSupport(allows recharging the battery and powering the board at the same time)0.96inch IPS LCD
    Plus ver.DC-DC, 2000mAType-C4MBSupport(allows recharging the battery and powering the board at the same time)-
    RP2040 chip
    Raspberry Pi Pico WDC-DC, 3000mAMicro USB2MB-with WIFI
    Raspberry Pi Pico WHDC-DC, 3000mAMicro USB2MB-with WIFI
    Raspberry Pi PicoDC-DC, 800mAMicro USB2MB--
    Raspberry Pi Pico HDC-DC, 800mAMicro USB2MB--
    Type-A ver.LDO, 500mAType-A4MB--
    Mini ver.LDO, 800mAType-C2MB--
    Tiny ver.LDO, 500mASeparate Type-C port adapter2MB-Separate adapter board design, adapting USB Type-C port via FPC
    RGB Matrix ver.LDO, 500mAType-C2MB-Onboard 5×5 RGB LED matrix
    BLE ver.LDO, 300mASeparate Type-C port adapter2MB-Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC
    ETH Port ver.LDO, 500mAType-C4MB-with Ethernet port
    0.99inch Round LCD with case ver.LDO, 500mAType-C2MB-0.99inch IPS LCD, CNC metal case
    1.28inch Round LCD ver.LDO, 300mAType-C2MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS LCD
    1.28inch Round LCD with case ver.LDO, 300mAType-C2MBSupport(allows recharging the battery and powering the board at the same time)1.28inch IPS LCD, CNC metal case
    1.28inch Round Touch LCD ver.LDO, 500mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.28inch Touch LCD
    1.28inch Round Touch LCD with case ver.LDO, 500mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.28inch Touch LCD, CNC metal case
    1.69inch Touch LCD ver.LDO, 500mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)1.69inch Touch LCD
    0.96 LCD ver.DC-DC, 1800mAType-C2MBSupport(allows recharging the battery and powering the board at the same time)0.96inch IPS LCD
    Plus ver.DC-DC, 1800mAType-C4MB/16MBSupport(allows recharging the battery and powering the board at the same time)-
    DVI port ver.LDO, 300mAType-C16MBSupport(allows recharging the battery and powering the board at the same time)Onboard DVI interface, TF card slot and PIO-USB port
    Cam & LCD ver.-Type-C16MB-Onboard grayscale camera and 1.14inch IPS LCD display
  • Brand
    Waveshare
    Raktárkészlet
    VAN
    Cikkszám
    RPI-WS29075
    Státusz
    ÚJ

  • RP2350-Touch-LCD-1.28

    1. RP2350-Touch-LCD-1.28 x1
    2. SH1.0 12PIN cable x1
    1RP2350-Touch-LCD-1.28
    2

    RP2350-Touch-LCD-1.28-B

    1. RP2350-Touch-LCD-1.28-B x1
    2. SH1.0 12PIN cable x1
    1RP2350-Touch-LCD-1.28-B
