Szünetmentes tápegység UPS HAT (B) Raspberry Pi-hez, 5 V kimenet, 5 A áram, Pogo Pins csatlakozó

ÚJ
Raktárkészlet: NINCS
Szünetmentes tápegység UPS HAT (B) Raspberry Pi-hez, 5 V kimenet, 5 A áram, Pogo Pins csatlakozó
  • Szünetmentes tápegység UPS HAT (B) Raspberry Pi-hez, 5 V kimenet, 5 A áram, Pogo Pins csatlakozó
  • Szünetmentes tápegység UPS HAT (B) Raspberry Pi-hez, 5 V kimenet, 5 A áram, Pogo Pins csatlakozó
  • Szünetmentes tápegység UPS HAT (B) Raspberry Pi-hez, 5 V kimenet, 5 A áram, Pogo Pins csatlakozó
  • Szünetmentes tápegység UPS HAT (B) Raspberry Pi-hez, 5 V kimenet, 5 A áram, Pogo Pins csatlakozó
12 591 Ft + 27% ÁFA | Bruttó:15 990 Ft
Nincs raktáron
Értesítést kérek, ha újra lesz raktáron
UPS HAT (B) Raspberry Pi-hez, 5 V szünetmentes tápegység, 5 A nagy áramerősség, Pogo Pins csatlakozó
Részletek Adatok Csomag tartalma
  • UPS HAT (B) for Raspberry Pi, 5V Uninterruptible Power Supply, 5A high current, pogo pins connector
    Uninterruptible Power Supply for Raspberry Pi

    Power your Pi seamlessly from power connection OR the backup batteries

    5A high current, pogo pins connector

    SAFETY CAUTIONS

    • Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
    • Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
    • Do not mix use old batteries with new ones, avoid using batteries of different brands.
    • When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
    • Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
    • Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.
    Features at a glance
    • Designed for Raspberry Pi series, compatible with Raspberry Pi 3 / 3B+ / 4B, etc.
    • I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
    • Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
    • Onboard 5V regulator, up to 5A continuous output current, more sufficient power source for Raspberry Pi
    • 5V USB output, convenient for powering other boards
    • Batteries warning indicators, easy to check if the battery is connected correctly
    • Comes with development resources and manual
    Specifications
    Output voltage5VCharger8.4V 2A
    Control busI2CDimensions56 × 85mm
    Battery support2x 18650 Li batteries (NOT included)Mounting hole size3.0mm
    Uninterruptible Power

    It is able to charge the batteries and provide power output at the same time from external power supplyAutomatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

    pogo pins connector

    Powering the Raspberry Pi via pogo pins, without using any GPIO resource,compatible with Raspberry Pi 5 / 4B / 3B+, etc.

    Connecting with Raspberry Pi 5

    Connecting with Raspberry Pi 4B

    Real time monitoring

    monitoring the batteries voltage, current, power, and remaining capacity via I2C

    When the voltage dips too low, it is possible to save files properly and then shutdown the system by software, to avoid any data loss

    for reference ONLY, the Raspberry Pi and Fan HAT are NOT included.
    Safe and stable circuit design

    Protection circuits for over charge/discharge, over current, short circuit, and reversealong with the equalizing charge feature, more safe and stable

    5V USB Output as well

    convenient for powering other boards

    Battery warning indicators

    easy to check if the battery is connected correctly

    Outline dimensions
    Resources & Services
    WIKI:UPS_HAT_(B)

    * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

    Selection guide
    ModelDevice SupportBattery Supportfeature
    Pico-UPS-ARaspberry Pi Pico14500 Li-ion battery (NOT included)Provides power supply via pin header
    Pico-UPS-B600mAh 3.7V Li-po batteryProvides power supply via pin header
    UPS HAT (C)Raspberry Pi Zero803040 Li-po battery 1000mAh 3.7VProvides power supply via Pogo pins
    Li-ion Battery HAT14500 Li-ion battery (NOT included)UPS not supported
    UPS HAT (B)Raspberry Pi 5/4B/3B+18650 Li battery × 2 (NOT included), up to 5A output current, with 8.4V battery chargerProvides power supply via Pogo pins, with 5V USB output
    UPS HAT (E)21700 Li battery × 4 (in series, NOT included), up to 5V 6A output current, 40W bi-directional fast charging Type-C portProvides power supply via Pogo pins, with 5V USB output
    UPS HATRaspberry Pi 4B/3B+18650 Li battery × 2 (NOT included), up to 2.5A output current, with 8.4V battery chargerProvides power supply via pin header, with 5V USB output
    UPS HAT (D)21700 Li battery × 2 (in parallel, NOT included), up to 2.5A output current, with 5V Type-C port battery chargerProvides power supply via Pogo pins, with 5V USB output
    Li-polymer Battery HAT3.7V 3000mAh 104060 Li-polymer battery, up to 2A output currentProvides power supply via pin header, UPS not supported
    UPS Power ModuleJetson Nano18650 Li battery × 4 (NOT included), up to 2.5A output current, with 8.4V battery chargerProvides power supply via 6PIN cable, with OLED screen
    UPS Power Module (B)18650 Li battery × 4 (NOT included), up to 5A output current, with 8.4V battery chargerProvides power supply via Pogo pins
    UPS Module 3SSuitable for the devices with Type-C power port18650 Li battery × 3 (in series, NOT included), up to 5V 5A output, with 12.6V battery chargerAdapting various interfaces via cables
    UPS Module MiniSuitable for CM4-IO-WIRELESS-BASE-B base board, etc.10440 Lithium battery × 3 (in parallel, NOT included), up to 5V 2.5A outputProvides power supply via pads or pin header
  • Brand
    Waveshare
    Raktárkészlet
    NINCS
    Cikkszám
    RPI-WS20568
    Státusz
    ÚJ

  • Actual Weight: 0.172 kg

    • The 18650 batteries are NOT included
    • Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more
    1. UPS HAT (B) x1
    2. OPTIONS 8.4V battery charger x1
    3. Acrylic protection panel x1

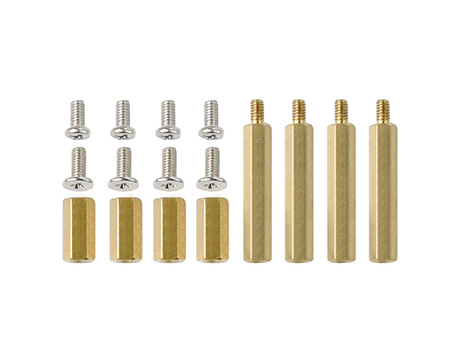

    4. Screws pack x1
